MAC 600 E NT (discontinued)

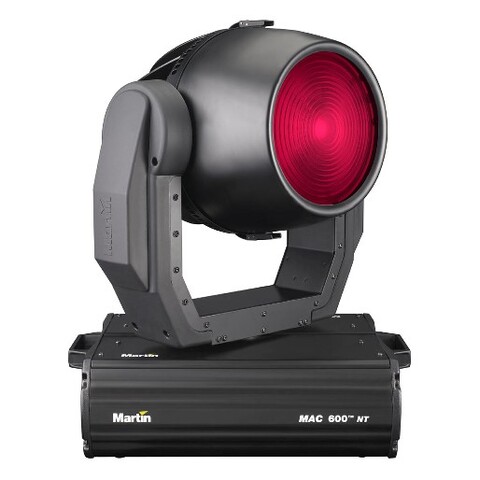

MAC 600 E NT
Larger Images

The MAC 600 E NT is a powerful wash light with a CMY color mixing system, variable CTC, frost effect for the zoom with a fast, smooth movement.

Videos





Features

  • 575 W discharge lamp
  • CMY color mixing system
  • 4 position color wheel plus open
  • Variable CTC
  • Frost and indexable beamshaper
  • Strobe effect up to 8 Hz, instant open and blackout
  • 18°, 25° (standard), 65° and 80° lens options
  • Mechanical dimming
  • Pan and tilt range of 440°/306°
  • Modular design for easy maintenance and servicing
  • Electronic ballast and flicker free light
  • Quiet operation

Specifications

Physical Length: 356 mm Width: 481 mm Height: 652 mm, head straight up Weight: 25.4 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: 0 - 100% Color wheel: 4 interchangeable filters (incl. UV transmitter), full and split colors, continuous rotation Dimmer: 0 - 100% Shutter: Strobe effect up to 8 Hz, instant open and blackout Beamshaper: 0° - 180° Diffuser: Variable frost filter Pan: 440° Tilt: 306°
Control and Programming DMX channels: 11/13/15 Setting and addressing: Control panel with LED display 16-bit control: Pan & tilt Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 575 W discharge Fitted as standard: Philips MSR 575/2 Color temperature: 7200 K CRI (Color rendering index): 80 Average lifetime: 1000 hours Hot restrike: No Socket: GX 9.5 Ballast: Electronic on models currently available Approved alternative lamp(s): Philips MSD 575, Osram HSR 575/72
Optics Beam angle: Narrow lens 18°, standard lens 25° (65° with floodlight diffuser), super-wide lens 103°, 1/10 peak angles
Construction Color(s): Black Housing: Steel and aluminum with molded plastic covers Finish: Electrostatic powder-coated Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin locking XLR
Electrical AC power: 100/110/120/200/210/220/230/240 V, 50/60 Hz Power supply unit: Auto-sensing ballast, user-configurable PSU mains voltage setting Main fuse (100-120 V power): 10 AT (slow blow) Main fuse (200-240 V power): 6.3 AT (slow blow)
Typical Power and Current 230 V, 50 Hz: 690 W, 3.2 A, PF 0.94
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, at 40° C ambient: 140° C (284° F) Total heat dissipation (calculated, +/- 10%): 2560 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 50 081-1, EN 50 082-1 US safety: ANSI/UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Philips MSR 575/2 lamp (installed): 97010201 6.3 AT fuse for use with 200 - 240 V power: 05020020 10 AT fuse for use with 100 - 120 V power: 05020025 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual: 35000088
Accessories Osram HSR 575/72 Lamp: 97010200 Philips MSD 575 Lamp: 97010202 Osram HSD 575/60 Lamp: 97010207 18° "long front" with Fresnel lens: 91610005 65° floodlight diffuser on standard front: 91610008 103° super wide front lens kit: 91610073 Omega bracket: 91602001 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Flightcase for 2 x MAC 500/600: 91510002 Outdoor Protection Dome: 90525010
Spare Parts Philips MSR 575/2 lamp: 97010201 6.3 AT main fuse: 05020020 10 AT main fuse: 05020025 Fuse F601, 5 AT: 05020018 Fuse F602, 4 AT: 05020016 Fuse F603, 0.315 AT: 05020004
Ordering Information MAC 600 E NT in cardboard box: 90210600 MAC 600 E NT in single flightcase: 90210601

Downloads

  Version Language Size Uploaded
Specifications
Photometric Data
en version A, updated: May 2018
A   en    May 2018
MAC 600 E NT DMX table
en version 1, updated: May 2018
1   en    May 2018
file type icon Caracteristiques techniques
fr version C, updated: May 2018
fr  36.8 KB May 2018
file type icon SP_MAC600NT_EN_C
en version C, updated: May 2018
en  27.4 KB May 2018
file type icon DMX chart
en version 1, updated: Oct 2020
en  20.9 KB Oct 2020
file type icon Technische Daten
de version C, updated: May 2018
de  433 KB May 2018
Manuals
file type icon MAC Viper Profile- Bedienungsanleitung
de version C, updated: Oct 2020
de  1.24 MB Oct 2020
file type icon Manuel d'utilisation
fr version C, updated: Oct 2020
fr  843 KB Oct 2020
file type icon MAC 600 E NT - User manual
en version C, updated: Oct 2020
en  533 KB Oct 2020
Illustrations
file type icon Dimensions
en version A, updated: May 2018
en  72.2 KB May 2018
file type icon Dimensions (DXF)
en version A, updated: May 2018
en  41.1 KB May 2018
Compliances
ETL Approval
en version A, updated: May 2018
A   en    May 2018
file type icon ETL Authorization to Mark
en version B, updated: May 2018
en  67.4 KB May 2018
file type icon ETL Authorization To Mark, E-ballast versions
es version A, updated: May 2018
es  150 KB May 2018
file type icon ELP PAR - EU Declaration of Conformity
en version A, updated: May 2018
en  48.3 KB May 2018
Software
platform icon MAC 600 E NT
version 1.0, updated: May 2018
1.0     May 2018
platform icon MAC 600 E NT Main CPU
version 1.3, updated: May 2018
1.3     60.9 KB May 2018
Parts
Super Wide Angle Lens
en version A, updated: May 2018
A   en    May 2018
Service Notes
MSR 575/2 Lamp Included
en version A, updated: May 2018
A   en    May 2018
DMX cables now optional accessories
en version A, updated: May 2018
A   en    May 2018
Hints And Tips
HSD 575 Incompatible with Magnetic Ballast Fixtures
en version A, updated: May 2018
A   en    May 2018
Fasten G-Clamp Correctly to Omega Bracket
en version A, updated: May 2018
A   en    May 2018
Fan Control Problem
en version A, updated: May 2018
A   en    May 2018
Electrical safety test equipment
en version B, updated: May 2018
B   en    May 2018
Serial Upload Compatibility Issues
en version A, updated: May 2018
A   en    May 2018
OSRAM HSD 575 Approved for Use
en version A, updated: May 2018
A   en    May 2018
Discharge Lighting Shutdown Guidelines
en version A, updated: May 2018
A   en    May 2018
Avoiding damage from sunlight and other light sources
en version B, updated: May 2018
B   en    May 2018
file type icon Improved HSD 575/72
en version A, updated: Oct 2020
en  43.4 KB Oct 2020
Firmware
platform icon MAC 600 E NT - Firmware
version 1.3, updated: Mar 2024
1.3     Mar 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
